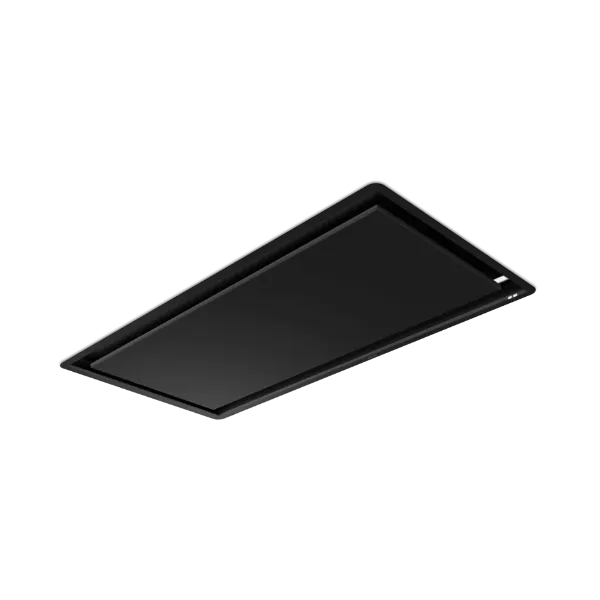

Elica ILLUS-PLS-RM-BK 100cm Ceiling Integrated Cooker Hood in Black

Elica ILLUS-PLS-RM-BK 100cm Ceiling Integrated Cooker Hood – Black

The Elica ILLUS-PLS-RM-BK 100cm Ceiling Integrated Cooker Hood in black is designed to blend seamlessly into modern kitchens, sitting flush with the ceiling to create a clean and minimalist look. By integrating the extraction system discreetly above the cooking area, this innovative hood keeps sightlines clear while providing powerful and intelligent ventilation.

Perfect for contemporary open-plan spaces or kitchens where overhead space is limited, the Illusion hood frees up the area above your hob while maintaining exceptional extraction performance. Its sleek design conceals the extraction system within the ceiling, offering a refined and uncluttered aesthetic that complements a wide range of kitchen styles.

This model features a remote motor configuration, meaning the motor is installed separately from the hood to help reduce noise within the kitchen. Please note that the motor is required but sold separately and will need to be purchased at additional cost.

Equipped with Airmatic technology, the hood uses an intelligent sensor to continuously monitor air quality. When vapours, cooking fumes, or even pollutants such as cleaning agents or cigarette smoke are detected, the system automatically activates and adjusts the extraction level accordingly. Once the air is clean again, the hood switches itself off, helping maintain a healthier kitchen environment with minimal effort.

The Illusion hood also offers Wi-Fi connectivity, allowing you to control and monitor the appliance via the Elica app or compatible voice assistants. From adjusting extraction levels to managing lighting, you can easily customise settings directly from your smartphone.

Integrated Tune White lighting allows you to adjust the LED colour temperature from warm to cool tones so it blends perfectly with the rest of your kitchen lighting. With Dim Light functionality, you can also fine-tune the brightness to create the ideal atmosphere while cooking or entertaining.

Designed with practicality in mind, the hood features Comfort Silence technology for quieter operation, delay switch-off to clear remaining vapours after cooking, and a maintenance alarm to remind you when the filters require attention. The long-lasting regenerable filters can last up to three years, reducing both maintenance and environmental impact.

Combining discreet design, intelligent sensors, and advanced connectivity, the Elica Illusion 100cm ceiling cooker hood offers a sophisticated and highly effective ventilation solution for modern kitchens.

Generic Data

• Weight:

  • H16: 23.5 kg

  • H30: 22.5 kg

  • No Motor: 17.3 kg

• Finish: Black Soft Touch Effect

• Dimensions: 100 × 50 cm

• Energy Class: A

• Minimum distance from wall unit (induction/radiant hob):

  • H16: 65 cm

  • H30: 60 cm

  • No Motor: 60 cm

• Minimum distance from wall unit (gas hob): 70 cm

• Duct transition: 150 mm

• Lighting: Strip LED 2 × 14 W – 2700 K to 5000 K – 563 lux

• Absorption:

  • H16: 303 W

  • H30: 298 W

  • No Motor: 428 W

Extraction

• Airflow (min–max):

  • H16: 275–720 m³/h

  • H30: 200–770 m³/h

  • No Motor: 230–850 m³/h

• Noise level (min–max):

  • H16: 51–68 dB(A)

  • H30: 40–53 dB(A)

  • No Motor: 25–56 dB(A)

• Controls: 3 speeds + 2 booster levels, remote control
