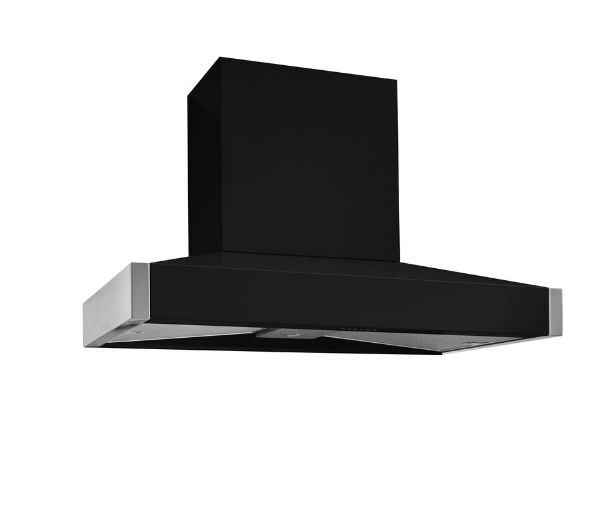

Mercury MHDPC1200AB 93760 1200 Pitch Chimney Hood in Ash Black (Satin)

The Mercury Extraction Canopy combines power and style, making it the perfect addition to your kitchen. Designed to complement the sleek lines of a Mercury range cooker, this high-performance cooker hood ensures a fresh and odour-free cooking environment.

Equipped with a variable speed centrifugal fan, it offers four speeds, including a temporary booster, with an impressive extraction rate of up to 795 m³ per hour. The removable air filters make maintenance simple, while the integral spotlights provide superior illumination for your hob.

Available in a range of colours to match or contrast your kitchen décor, this 120cm wide cooker hood is rated A for energy efficiency, ensuring reduced running costs without compromising on performance.

• Powerful extraction up to 795 m³/h
• Four speeds, including a booster function
• Integral spotlights for effective hob illumination
• Removable air filters for easy cleaning
• Energy-efficient (A rating)
• Designed to complement Mercury range cookers

120cm wide

Key Features

• Width: 1200 mm
• Noise Level: 61.6 dB
• Colour: Ash Black (Satin)
• Energy Rating: A
• Number of Speed Settings: 3

Technical Specifications

• SKU: MHDPC1200AB/
• Weight: 29 kg
• Light Power: 2 W
• Filter Type: Cassette
• Energy Efficiency Index (EEI): 48.1
• Fluid Dynamic Efficiency Class: A
• Fluid Dynamic Efficiency (FDE): 32.1
• Flow Rate at Best Efficiency Point (BEP): 481.2
• Static Pressure at BEP: 439
• Electric Power Input at BEP: 182.6 W
• Time Increase Factor (F): 0.8
• Lighting Efficiency Class: A
• Lighting Efficiency (LE): 38.8
• Grease Filtering Efficiency Class: B
• Grease Filtering Efficiency (GFE): 89.5
• Effectiveness of the Hob Light: 202
• Annual Energy Consumption (AEC): 57.1 kWh
• Standard Annual Energy Consumption (SAEC): 118.59 kWh
• Nominal Electric Power Input of Lighting System: 5.2 W

Extracted Air Flow Rates

• Setting 1 (Working Point): 244.1 m³/h
• Setting 1 (Free Blowing): 250 m³/h
• Setting 2 (Working Point): 378 m³/h
• Setting 3 (Working Point): 511 m³/h
• Setting 3 (Free Blowing): 525 m³/h
• Boost Setting (Working Point): 775.3 m³/h
• Boost Setting (Free Blowing): 795.8 m³/h

Noise Levels (Sound Power Level)

• Setting 1: 45.3 dB
• Setting 2: 53.5 dB
• Setting 3: 61.6 dB
• Boost Setting: 70.5 dB

Power Consumption

• Standby Mode Power Consumption: 0.27 W
