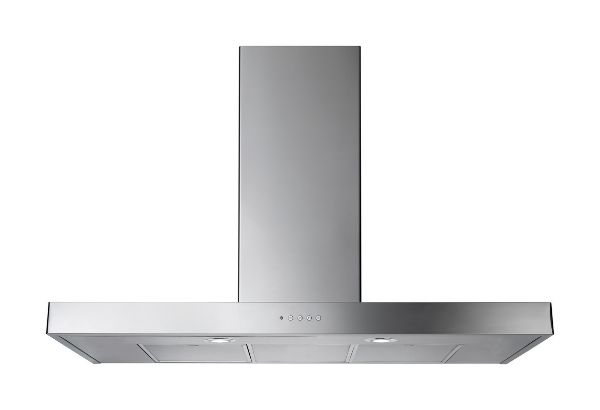

Rangemaster 105320 90cm Flat Hood Cooker Hood in Stainless Steel - UNBHDS90SS/

Falcon Flat Hood – Sleek, Modern Extraction for Contemporary Kitchens

With its sleek, minimalist design, the Falcon Flat Hood adds the perfect finishing touch to any modern kitchen. This wall-mounted hood offers powerful extraction and a contemporary aesthetic, making it both a practical and stylish choice.

Modern Touch Controls
Featuring intuitive front-mounted touch controls, the Flat Hood allows for effortless adjustment of fan speeds and LED lighting, putting you in complete control of your cooking environment.

Flexible Installation Options
Designed for versatility, the hood can be installed as either a recirculating or ducted model, ensuring it suits a range of kitchen configurations and ventilation needs.

Available Sizes & Colours
The Flat Hood is available in three widths and a choice of six colours, allowing you to match or contrast your hood with other kitchen appliances and décor.

Brand

• Rangemaster

• Model: UNBHDS90SS

Performance at Best Efficiency Point (BEP)

• Flow Rate at BEP: 411 m³/h

• Static Pressure at BEP: 389 Pa

• Electric Power Input at BEP: 187 W

• Grease Filtering Efficiency (GFE): 75.1%

• Off Mode Power Consumption: 0.40 W

Air Extraction Rates

• Setting 1 (Working Point): 300 m³/h

• Setting 1 (Free Blowing): 310 m³/h

• Setting 2 (Working Point): 460 m³/h

• Setting 2 (Free Blowing): 480 m³/h

• Setting 3 (Working Point): 620 m³/h

• Setting 3 (Free Blowing): 640 m³/h

• Boost Setting (Working Point): 700 m³/h

• Boost Setting (Free Blowing): 730 m³/h

Noise Levels

• Setting 1: 52 dB(A)

• Setting 2: 62 dB(A)

• Setting 3: 69 dB(A)

• Boost Setting: 71 dB(A)

Lighting

• Effectiveness of Hob Light: 240 Lux

Energy & Efficiency – Fiche 65/2014

• Annual Energy Consumption: 76.7 kWh/year

• Energy Efficiency Class: B

• Fluid Dynamic Efficiency: 23.70

• Fluid Dynamic Efficiency Class: B

• Lighting Efficiency: 109.0

• Lighting Efficiency Class: A

• Grease Filtering Efficiency: 75.1%

• Grease Filtering Efficiency Class: C

• Airflow in Normal Use (Min/Max): 300 / 620 m³/h

• Airflow in Boost Mode: 700 m³/h

• Sound Power Level (Normal Use): 52 / 69 dB(A)

• Sound Power Level (Boost): 71 dB(A)
