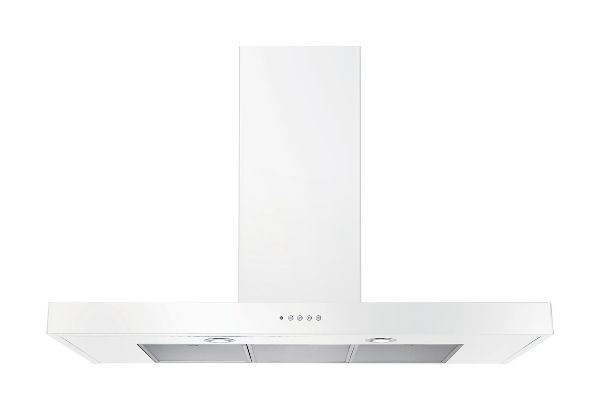

Rangemaster 105350 90cm Flat Hood Cooker Hood in White - UNBHDS90WH/

Falcon Flat Hood – Modern Style Meets Powerful Performance

With its sleek and contemporary design, the Falcon Flat Hood is the ideal finishing touch for any modern kitchen. Its minimalist appearance and clean lines make it a stylish addition that effortlessly complements today’s kitchen aesthetics.

Easy-to-Use Touch Controls
The front-mounted touch controls allow quick and simple adjustment of fan speed and LED lighting, offering both practicality and elegance while cooking.

Flexible Installation Options
Designed for versatility, the Flat Hood can be installed as either a recirculating or ducted extractor, ensuring it suits a wide range of kitchen layouts and ventilation needs.

Available in Multiple Sizes and Colours
Choose from three sizes and six modern colour finishes to perfectly match your kitchen’s style and configuration.

Brand

• Rangemaster

Model

• UNBHDS90WH

Air Extraction Performance

• Flow Rate at BEP: 411 m³/h

• Static Pressure at BEP: 389 Pa

• Electric Power Input at BEP: 187 W

• Extracted Air Flow – Setting 1 (Working Point): 300 m³/h

• Extracted Air Flow – Setting 1 (Free Blowing): 310 m³/h

• Extracted Air Flow – Setting 2 (Working Point): 460 m³/h

• Extracted Air Flow – Setting 2 (Free Blowing): 480 m³/h

• Extracted Air Flow – Setting 3 (Working Point): 620 m³/h

• Extracted Air Flow – Setting 3 (Free Blowing): 640 m³/h

• Extracted Air Flow – Boost (Working Point): 700 m³/h

• Extracted Air Flow – Boost (Free Blowing): 730 m³/h

Noise Levels

• Setting 1: 52 dB(A)

• Setting 2: 62 dB(A)

• Setting 3: 69 dB(A)

• Boost Setting: 71 dB(A)

Lighting

• Effectiveness of Hob Light: 240 Lux

Energy & Efficiency (Fiche 65/2014)

• Annual Energy Consumption: 76.7 kWh/year

• Energy Efficiency Class: B

• Fluid Dynamic Efficiency: 23.70

• Fluid Dynamic Efficiency Class: B

• Lighting Efficiency: 109.0

• Lighting Efficiency Class: A

• Grease Filtering Efficiency: 75.1%

• Grease Filtering Efficiency Class: C

• Airflow in Normal Use (Min/Max): 300 / 620 m³/h

• Airflow at Boost Setting: 700 m³/h

• Sound Power Level (Normal Use): 52 / 69 dB(A)

• Sound Power Level (Boost): 71 dB(A)

Other Features

• Power Consumption in Off Mode: 0.40 W
