Rangemaster 89390 110cm Chimney Cooker Hood in Black - UNBHDC110BL/ - Discontinued

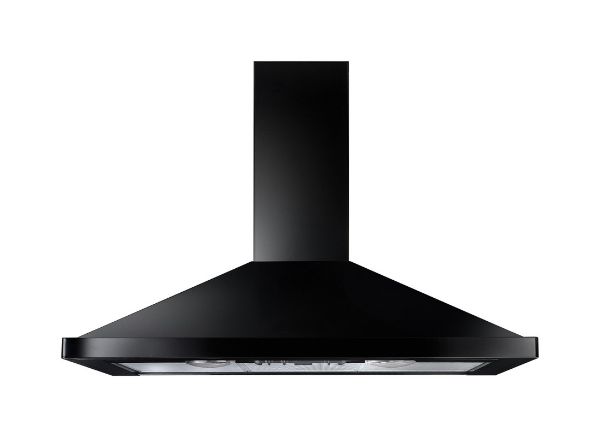

Rangemaster 110cm Chimney Hood – Black

Reduce grease and cooking odours in your kitchen with the traditional Rangemaster chimney hood. Finished in sleek black, this 110cm hood combines classic style with practical performance to perfectly complement your hob.

Equipped with easy slide controls and two LED bulbs for clear lighting, it can be configured for either ducted or recirculating extraction. A charcoal filter is included for efficient air purification during recirculation use.

Key Features:

• Colour: Black
• Width: 110cm
• Controls: Easy slide controls
• Lighting: 2x LED bulbs
• Extraction Rate: 210 – 460 m³/h (depending on installation)
• Type of Extraction: Ducted and recirculation
• Charcoal Filter: Included for re-circulation

Product Code: 89390

Dimensions (HxWxD): 735-1020 x 1098 x 490 mm

Warranty: 2 years parts and labour

This hood offers reliable grease and odour removal with the trusted style of Rangemaster, ideal for any kitchen setting.

Brand
Rangemaster

Performance

• Flow Rate at BEP: 235.0

• Static Pressure at BEP: 168

• Electric Power Input at BEP: 136.0 W

• Grease Filtering Efficiency (GFE): 75.1%

Extracted Air Flow

• Setting 1 at working point: 240 m³/h

• Setting 1 free blowing: 250 m³/h

• Setting 2 at working point: 330 m³/h

• Setting 2 free blowing: 350 m³/h

• Setting 3 at working point: 440 m³/h

• Setting 3 free blowing: 460 m³/h

Noise Levels (Sound Power Level dB(A))

• Setting 1: 55

• Setting 2: 64

• Setting 3: 69

Effectiveness of the Hob Light
800

Fiche 65/2014 Details

• Trade Mark: Rangemaster

• Model: UNBHDC110BL/

• Annual Energy Consumption: 91.7 kWh/year

• Energy Efficiency Class: D

• Fluid Dynamic Efficiency: 8.10

• Fluid Dynamic Efficiency Class: E

• Lighting Efficiency: 80.0

• Lighting Efficiency Class: A

• Grease Filtering Efficiency: 75.1

• Grease Filtering Efficiency Class: C

• Air Flow (minimum/maximum in normal use): 240 / 440 m³/h

• Air Flow at intensive or boost setting: —

• Noise Emissions (minimum/maximum in normal use): 55 / 69 dB(A)

• Noise Emissions at intensive or boost setting: —
