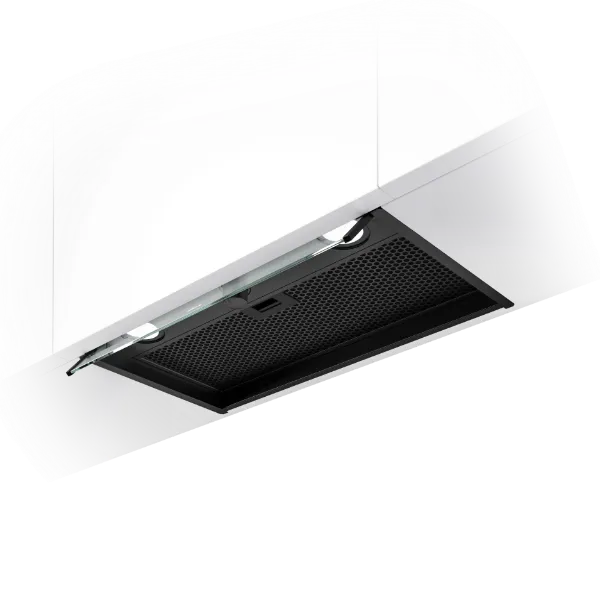

The Elica BOXN-LX-ED-B90 90cm Integrated Cooker Hood is a wide built-in extraction solution designed to blend discreetly into contemporary kitchen cabinetry. With a maximum extraction rate of 620 m³/h, three speed settings and flexible ducted or recirculating installation, it provides effective control of cooking vapours while maintaining a streamlined, integrated appearance. Practical features including Elica's No Drip System, Cabinet Protection and easy-access filters make this 90cm cooker hood particularly well suited to busy modern kitchens.
No Drip System – Helps Prevent Condensation
Elica's No Drip System is designed to tackle the condensation that can form when warm cooking vapours meet the cooler surfaces of a cooker hood. This is particularly useful when cooking on induction hobs, where condensation can otherwise drip back onto the hob or food. By helping to prevent this build-up and dripping, the BOXN-LX-ED-B90 keeps the cooking area cleaner and more comfortable to use.
Powerful 620 m³/h Extraction
With airflow ranging from 255 m³/h to 620 m³/h, this Elica integrated hood gives you the flexibility to match extraction to your cooking. Choose a lower setting for lighter everyday cooking or increase the airflow when dealing with greater quantities of steam, vapour and cooking odours. Three mechanical rotary-controlled speeds make adjustment straightforward.
Discreet Integrated Design
The built-in design allows the hood to sit neatly within your kitchen cabinetry rather than becoming a dominant feature of the room. At 894mm wide, it provides a broad extraction area while maintaining a clean, coordinated kitchen appearance. This makes it a practical choice for customers who want effective ventilation without compromising a minimalist kitchen design.
Cabinet Protection
Elica's Cabinet Protection design helps shield surrounding wall units from cooking vapours. Side protection combined with an ergonomic front visor helps reduce the exposure of cabinetry to moisture and vapour, supporting the long-term condition of your kitchen furniture.
Ducted or Recirculating Installation
The BOXN-LX-ED-B90 can operate using either ducted extraction or recirculation, giving you greater flexibility when planning your kitchen. Ducted installation expels extracted air outside through the 150mm duct outlet, while recirculating installation can be used with an optional charcoal filter where external ducting is not suitable.
Optional Regenerable Charcoal Filter
For recirculating installations, an optional standard or regenerable charcoal filter can be fitted to help remove cooking odours before air is returned to the kitchen. Elica's regenerable filter option is washable and can last for up to three years, compared with the stated three-to-six-month average lifespan of conventional filters, helping reduce the frequency of replacement.
Easy to Maintain
Regular cleaning is made simpler thanks to removable, washable and replaceable grease and odour filters. Easier access to these components helps you keep the hood hygienic and maintain effective extraction performance without making routine maintenance unnecessarily complicated.
LED Cooking Area Lighting
Two 2.5W LED lights illuminate the cooking area with a 3500K light temperature and a stated intensity of 381 lux. This provides practical visibility across the hob while cooking, helping you keep a clear view of pans and ingredients.
Perfect For
The Elica BOXN-LX-ED-B90 is particularly suitable for households looking for a 90cm integrated cooker hood that combines strong extraction with a discreet built-in appearance. Its condensation-control technology makes it especially useful in kitchens with induction cooking, while its ducted and recirculating options provide flexibility for different kitchen layouts.
Why You'll Love It
Combining extraction performance of up to 620 m³/h with condensation management, cabinet protection and straightforward maintenance, the Elica BOXN-LX-ED-B90 is designed around practical everyday cooking. Its integrated format keeps the kitchen looking uncluttered, while flexible installation and three extraction speeds allow it to adapt to different cooking and ventilation requirements.
Key Features
- 90cm built-in integrated cooker hood
- Maximum extraction rate of 620 m³/h
- Three extraction speeds with mechanical rotary controls
- No Drip System helps prevent condensation and dripping
- Cabinet Protection helps shield surrounding wall units from cooking vapours
- Suitable for ducted or recirculating installation
- Optional standard or regenerable charcoal filter
- Regenerable charcoal filter option can last up to three years
- Two 2.5W LED lights for clear hob illumination
- Removable, washable and replaceable filters for easier maintenance
- 150mm duct outlet
- Two-year parts and labour warranty

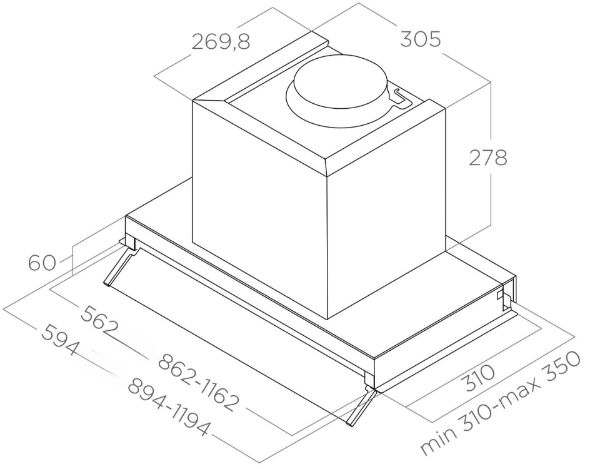

Product Dimensions
Width: 894mm
Depth: 310–350mm
Height: 338mm
Chimney width: 305mm
Chimney depth: 269.8mm
